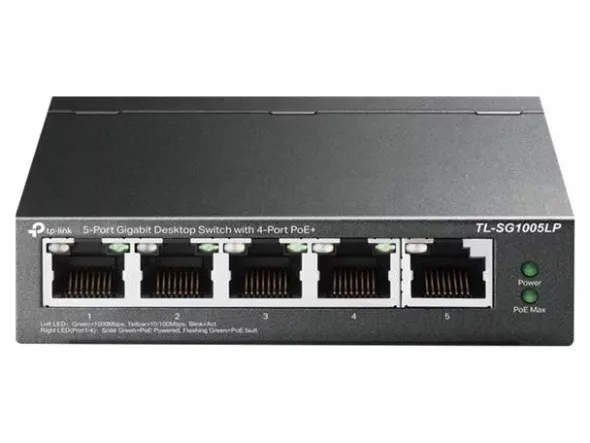

Switch Desktop TP-Link TL-SG1005LP – V1 – unmanaged – 5 x 10/100/1000 (4 PoE+)

Lo switch desktop TL-SG1005LP è dotato di standard PoE+ 802.3af/at e supporta alimentazione fino a 30W per ogni porta PoE+, con Power Budget totale fino a 40W per le 4 porte PoE+. Ideale per applicazioni di videosorveglianza e per reti professionali in ambito PMI, per la connessione di access point Wi-Fi, telefoni IP, computer, stampanti, server e molto altro.

CARATTERISTICHE HARDWARE

Interfaccia
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Numero ventole Fanless

Alimentatore esterno External Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate 7.44 Mpps

Porte PoE
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W

Tabella ARP 2K

Jumbo frame 16 KB

Capacità di switching 10 Gbps

Dimensioni ( L x P x A ) 3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption
• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation
• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

CARATTERISTICHE SOFTWARE

Caratteristiche avanzate
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

Metodo di trasferimento Store-And-Forward

ALTRO
Certificazione FCC, CE, RoHS

Ambiente
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
