Small 1.2″ 8×8 Ultra Bright Square White LED Matrix + Backpack

What’s better than a single LED? Lots of LEDs! Matrices like these are ‘multiplexed’ – so to control 64 LEDs you need 16 pins. That’s a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you but there’s a lot of wiring to set up and they take up a ton of space. Here at Adafruit we feel your pain! After all, wouldn’t it be awesome if you could control a matrix without tons of wiring? That’s where these lovely LED matrix backpacks come in. We have them in three flavors – a mini 0.7″ 8×8, a small 1.2″ 8×8 and a 4-digit 0.56″ 7-segment. They work perfectly with the matrices we stock in the Adafruit shop and make adding a bright little display trivial.

The matrices use a driver chip that does all the heavy lifting for you: They have a built in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface. These 1.2″ matrix backpacks come with three address-selection jumpers so you can connect up to eight 1.2″ 8×8’s together (or a combination, such as four 1.2″ 8×8’s and four 7-segments, etc) on a single I2C bus.

The product kit comes with:

A fully tested and assembled 1.2″ LED backpack

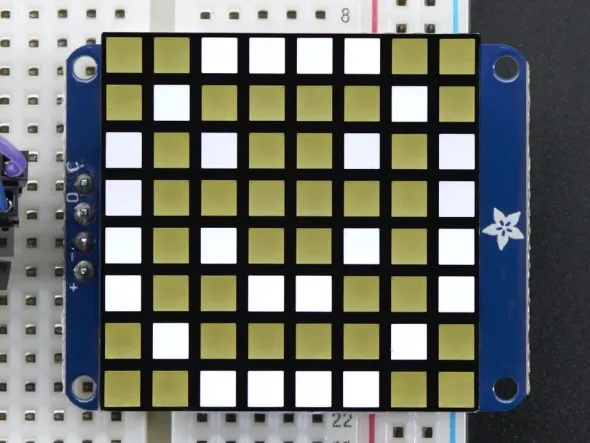

1.2″ 8×8 Matrix Square Pixel White / w/backpack
4-pin header
A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.

Of course, in classic Adafruit fashion, we also have a detailed tutorial showing you how to solder, wire and control the display. We even wrote a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment. If you’ve been eying matrix displays but hesitated because of the complexity, this is the solution you’ve been looking for!

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8×8 LED matrices

Using a high power shift register to drive 8×8 matrices with a NETduino

Datasheet – this is for the Pure Green version, whereas the one we are selling here is White, it’s clearly different but otherwise has very similar specs.

Matrix Dimensions:

31mm x 31mm x 7mm / 1.2″ x 1.2″ x 0.3″
Height without Pins: 7mm / 0.3″
Weight: 7.65g
Backpack Dimensions:

41mm x 33mm x 2mm / 1.6″ x 1.3″ x 0.08″
Weight: 5.2g
