RS232 Shield per Arduino

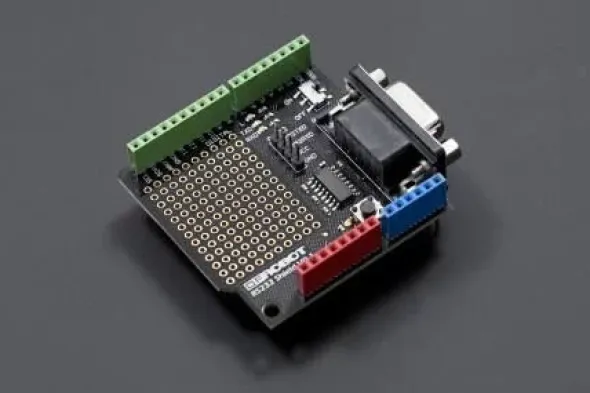

This RS232 shield is designed for the Arduino controller,and it can easily convert UART to RS232 interface. The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping. It provides a run / program mode switch. When switched OFF, you’ll be able to programme the Arduino controller; When switched ON, you can use the shield normally. Gold immersion PCB. Long pins on the back that are compatible with most Arduino controllers.

Compability
Arduino UNO
Arduino UNO R3
Arduino Mega 1280/2560

SPECIFICATION

Voltage: +5V
16 digital IO port (including a I2C interface)
6 analog IO port and power
Operation and programming mode switch
Transceiver indicating LED
DB9 connectors (female), RS232 pins
Weldable area
Reset switch
Module size: 55mmx53mm

RS232 shield x1
