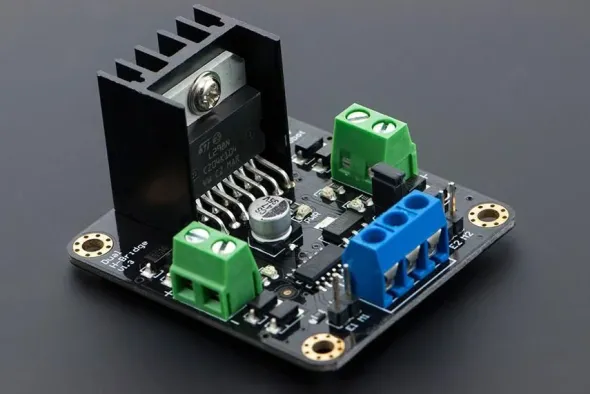

MDV 2x2A DC Motor Controller (L298N)

INTRODUCTION
This is a 4.8-46V, 2A Dual Motor Controller which is the revised version of the DF-MDV1.0. Its performance has been improved greatly. It can bear larger current due to the increased heat-sink dissipation. It is easy to control, using LGS’s outstanding high-power motor driver chip, the L298N. This chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance.

This breakout module with standard screw holes will help on applications and devices with flat spaces, so you don’t need to use the Arduino stacked up shield.

SPECIFICATION

The logic part of the input voltage: 6 ~ 12V
Driven part of the input voltage Vs: 4.8 ~ 46V
The logical part of the work current Iss: 36mA
Drive part of the operating current Io: 2A
Maximum power dissipation: 25W (T = 75 degree Celsius)
Control signal input level:
High level: 2.3V = Vin = Vss
Low:-0.3V = Vin = 1.5V
Operating temperature: -25 degree Celsius ~ +130 degree Celsius
Drive Type: Dual high-power H-bridge driver
Module Size: 47 mm (1.85 in)× 53mm (2.1 in)
Module Weight: About 29g
