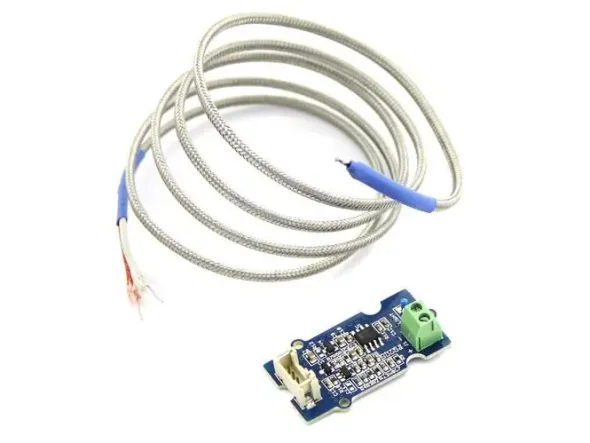

Grove – High Temperature Sensor

Thermocouples are very sensitive, requiring a good amplifier with a cold – compensation reference. The Grove – Temperature Sensor USES a K type thermocouple Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600? , and The accuracy is ±(2.0% + 2?)

Specifications

Voltage:3.3 ~ 5V

Max power rating at 25? :300mW

Operating temperature range:-40 ~ +125 ?

The temperature measurement range is (-50 ~ +600?)

Amplifier output voltage range (0 ~ 3.3 V) mv

Cold junction compensation (environment temperature measurement)

Thermocouple temperature measurement accuracy of + / – 2.0% (+ 2 ?)

Package Include:

Grove – High Temperature Sensor x1

Thermocouple Temperature Sensor x1

24AWG Grove Cable- 4P-4P-2.0-200mm x1
